Settings UI

Admins configure the bridge from an in-game panel. Changes apply live — no resource restart for module picks.

Open with /lumixbridge or /lbridge.

TIP

Screenshots below are from the settings UI (browser preview). You can replace the PNGs in public/products/bridge/ with in-game captures anytime — paths stay the same.

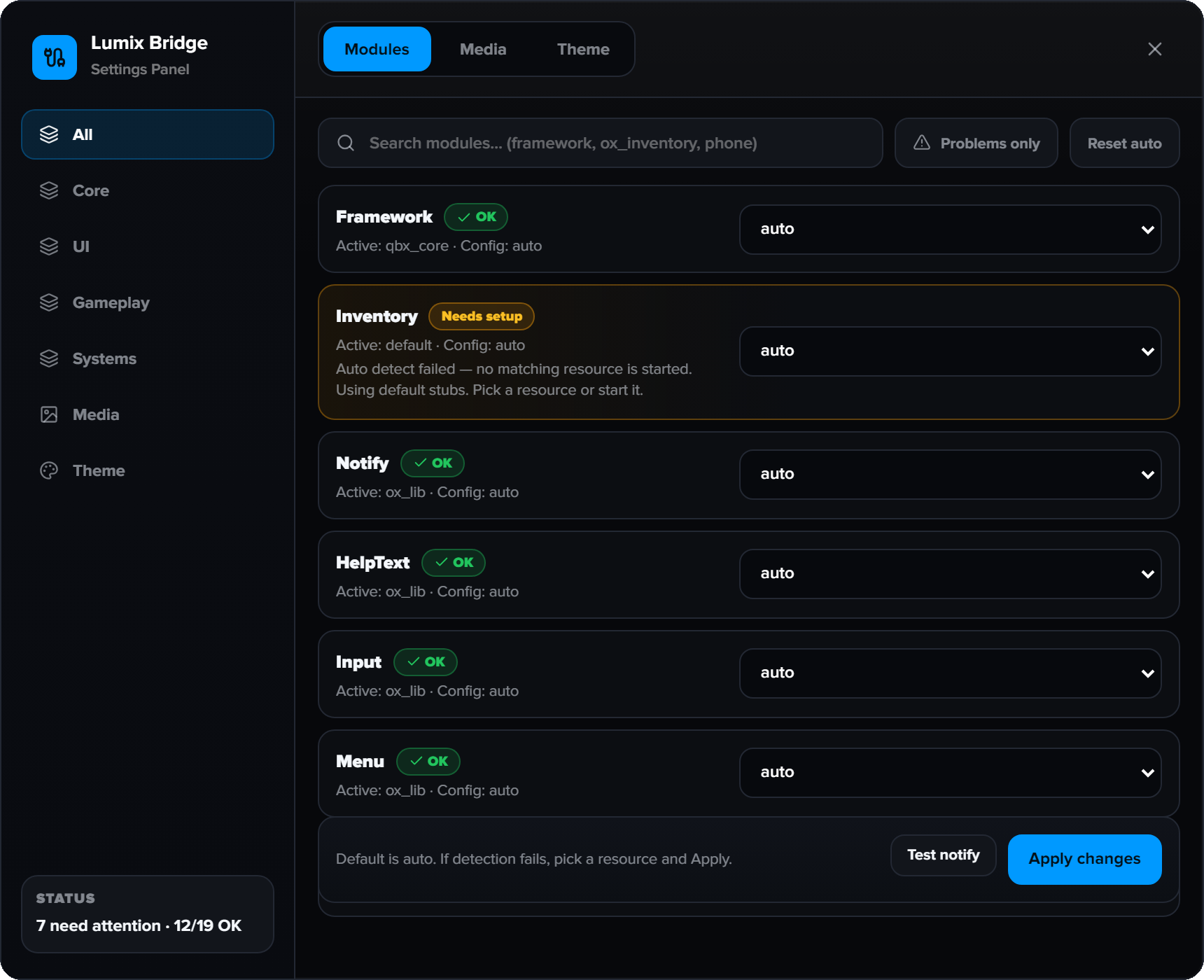

Modules

This is the main tab. Each row is a module (Framework, Inventory, Notify, Target, …).

Control	Meaning
auto	Detect whichever matching resource is started
Resource name	Force that provider (e.g. ox_inventory)
Green / OK badge	Bound correctly
Amber / Needs setup	Auto failed or forced resource is not running
Apply changes	Save + hot-reload on server and clients

What you should pick

1. Leave most rows on auto if your stack is already started.
2. If a row shows Needs setup, open the dropdown and pick the resource you actually use.
3. Click Apply changes.

TIP

Filter by group (Core, UI, Gameplay, Systems) in the left sidebar, or use search / “Problems only”.

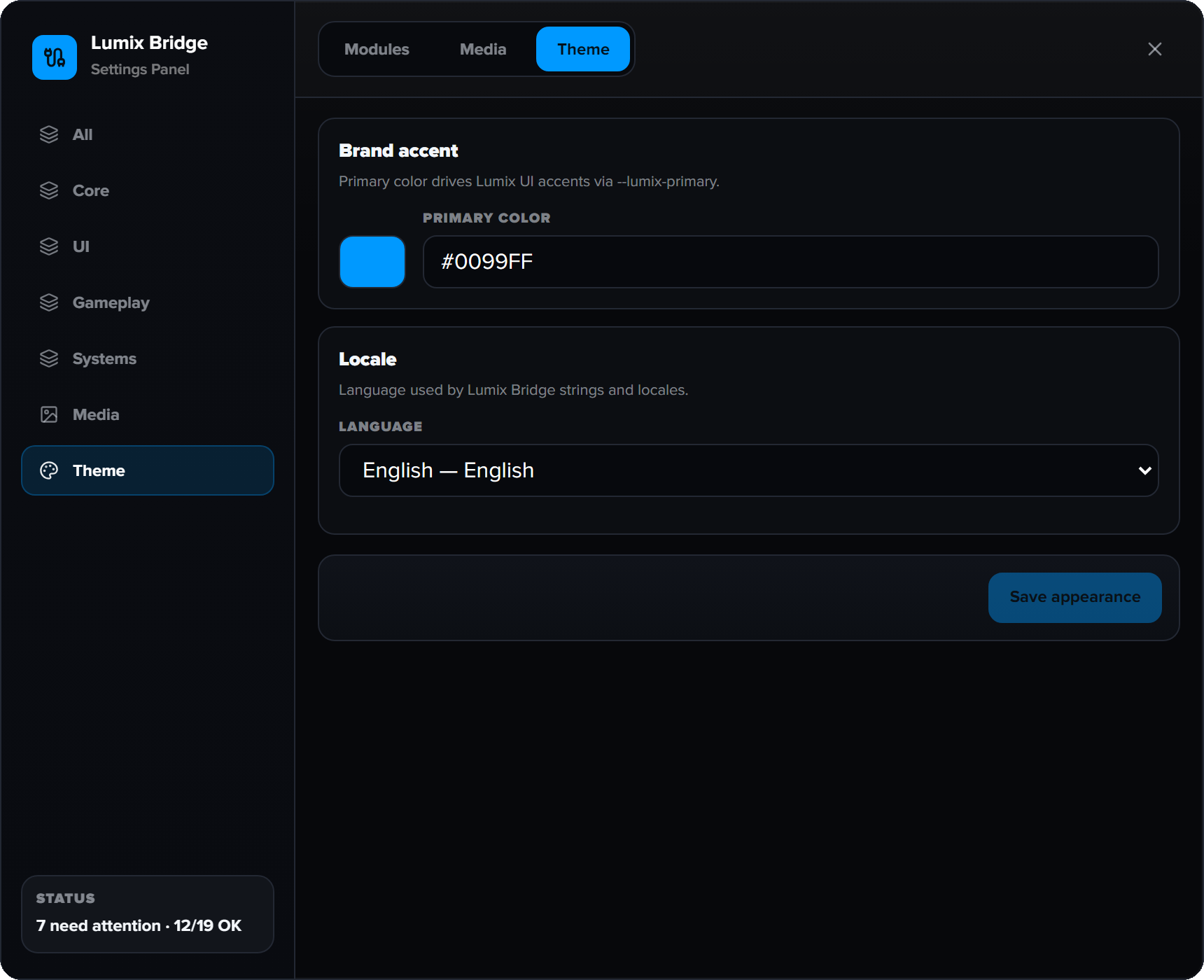

Theme

Setting	Effect
Primary color	Brand accent for Nuiro UIs (--lumix-primary)
Locale	Language for bridge strings (and other Nuiro scripts that follow bridge appearance)

Save with Apply on this tab. Other Nuiro resources (e.g. coinshop) read these values from the bridge.

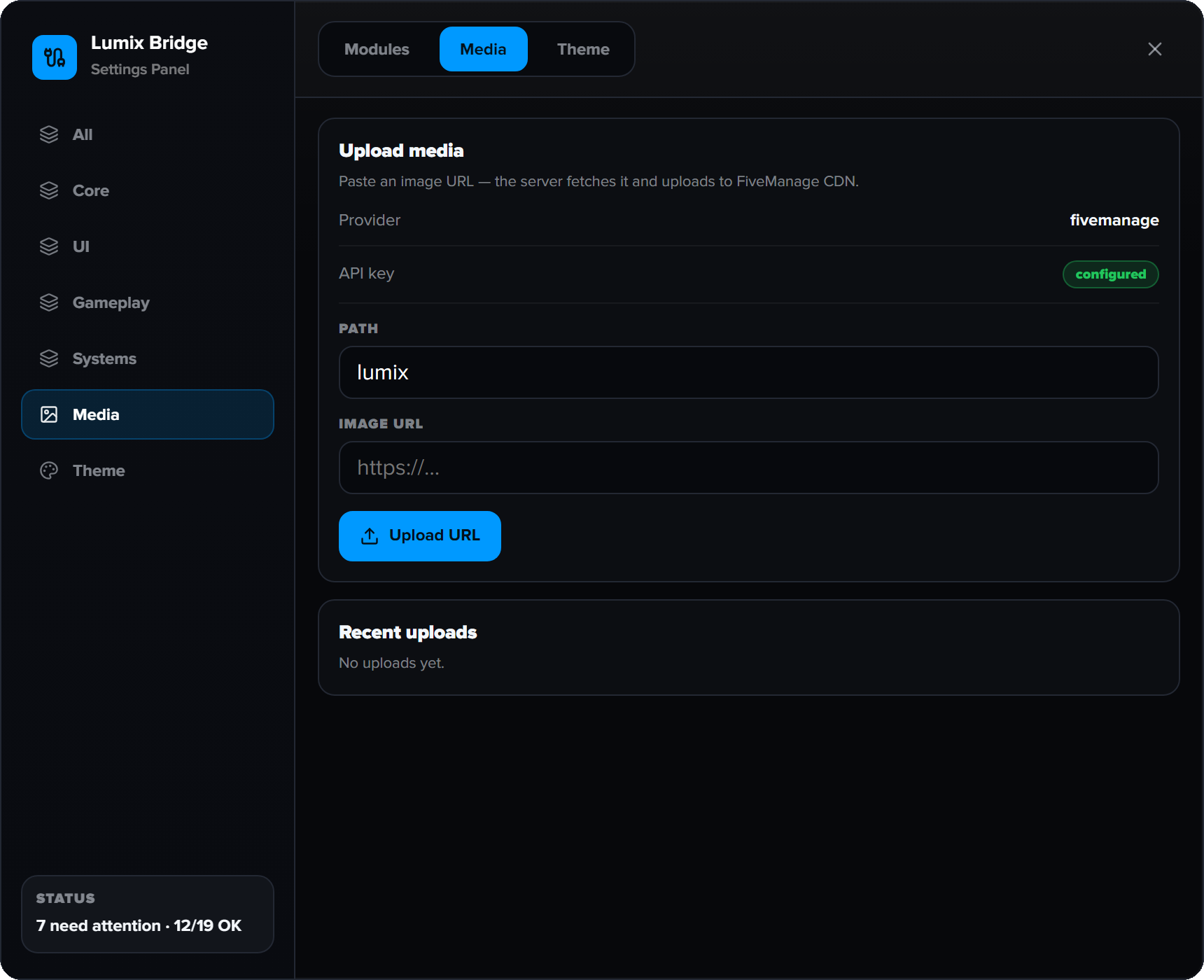

Media

Upload images to your CDN (FiveManage) for use in other Nuiro scripts.

• Requires set lumix_bridge:fivemanage_key "..." in server.cfg
• Default folder path comes from config / this tab
• Recent uploads are listed for quick copy

Prefer UI or config files?

When	Use
Server is online	Settings UI (/lbridge)
First install / offline edit	config/*.lua

UI values are stored in data/settings.json and merge over file defaults on start.
